915MHz Patch Antenna

915MHz Patch Antenna

Description

The SPCBD-S102-07D is a low-cost solution for ISM band applications as well as back scatter type RFID systems that require a high-performance antenna. It utilizes a single patch design with a 915MHz center frequency and is manufactured using high temperature Kappa 438 for durability in extreme conditions.

Applications:

  • ISM Transmitters / Receivers
  • Active and Back scatter RFID systems

Specifications

  • 915MHz Center Frequency
  • 50 Ohm Impedance
  • VSWR: 1.03
  • Return Loss: -32dB
  • Bandwidth: ~7MHz
  • Gain: 3.3dBi
  • Single Patch Design
  • *Vertical Polarization
  • SMA Connector
  • RoHS Compliant
  • Rogers substrate for higher efficiency
  • Operating Temperature: -65°C to 165°C

*Two corners of the antenna have been cut to induce circular polarization.

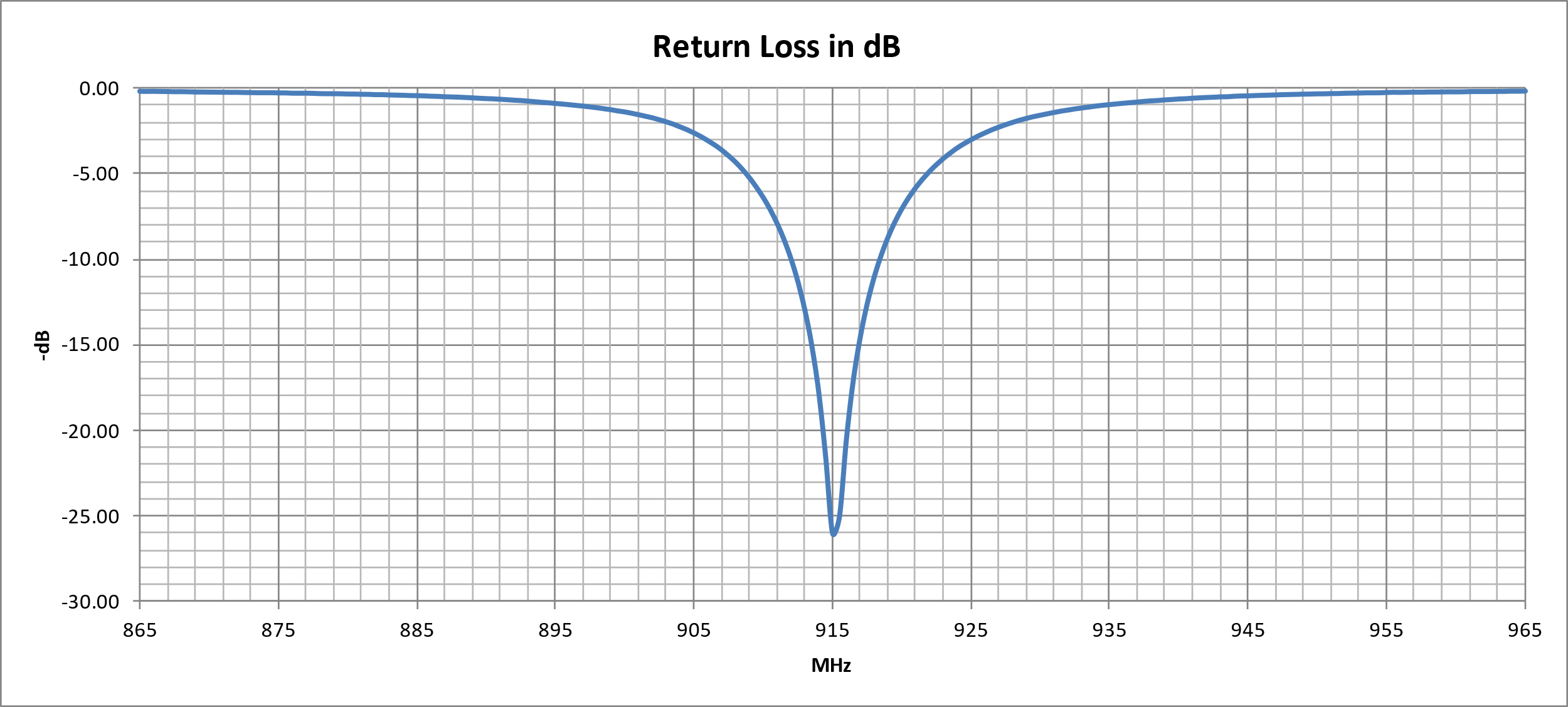

915MHz Patch Antenna Measurement

915MHz Patch Antenna
