2.45GHz Patch Antenna
Description
- The SPCBD-S123-06 is a low-cost solution for ISM band applications as well as 802.15.4, Bluetooth & WiFi applications that require a high-performance antenna. It utilizes a single patch design with a 2.45GHz center frequency and is manufactured using high temperature FR-4 for durability in extreme conditions.
Applications:
- ISM Transmitters / Receivers
- 802.15.4, Bluetooth, WiFi
$29
Buy Now
Specifications
- 2.45MHz Center Frequency
- 50 Ohm Impedance
- VSWR: 1.04
- Return Loss: -36dB
- Bandwidth: 36MHz
- Single Patch Design
- *Vertical Polarization
- SMA Connector
- RoHS Compliant
- Rogers PCB Substrate for higher efficiency
- Operating Temperature: -65°C to 165°C
*Two corners of the antenna have been cut to induce circular polarization.

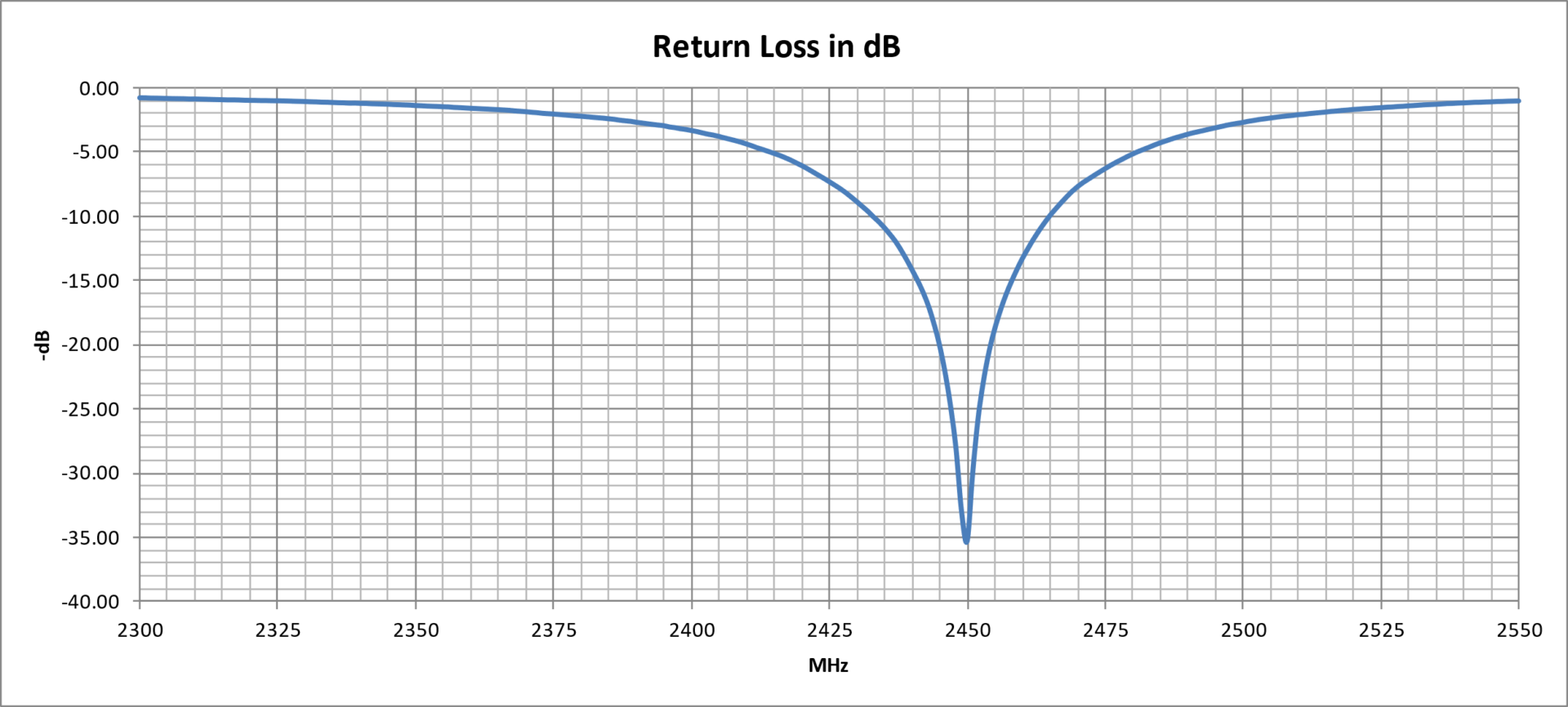

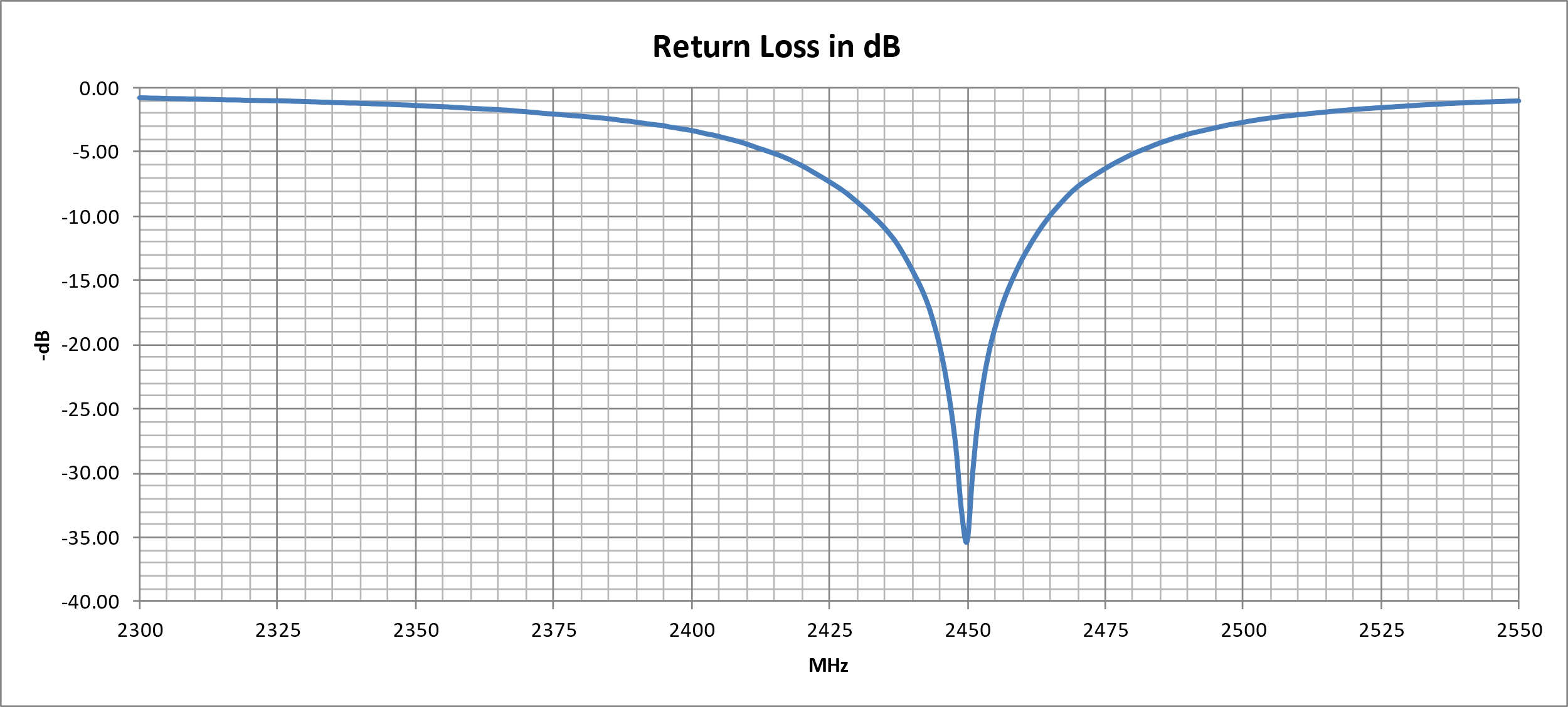

2.45GHz Patch Antenna Measurement
